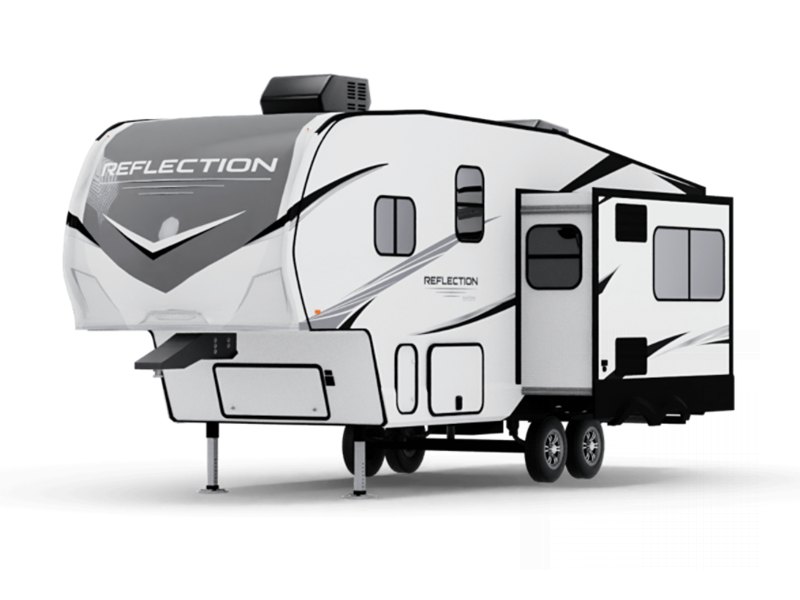

Grand Design Reflection 150 Series Fifth Wheel

Previous
Next
1 of 33

Grand Design is proud of the Reflection 150 Series fifth wheel. The 150 Series is specifically designed for those half-ton towable short bed trucks, and provides a hitch featuring a 90% turning radius without the use of a slider hitch in any 5' 5" truck bed. You will also find these units to be over 1,000 lb. lighter than competitors with dry weights starting at under 7,000 lbs., as well as a lighter hitch weight by up to 250 lbs., with more payload capacity available too.



The Reflection 150 Series offers the same quality in construction and features that all Grand Design products are known for, and will provide you with a fifth wheel that you will be proud to own, and will last you for years to come!



Come get your new Reflection 150 Series fifth wheel today, and begin your camping season making memories that are sure to last a lifetime!

  • Reflection 150 Series 220RK

    Reflection 150 Series 220RK Floorplan Image

    Take a Virtual Tour

    Grand Design Reflection 150 Series 220RK fifth wheel highlights: L-Shaped Chaise ... more about Reflection 150 Series 220RK

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 1
    Length 26 ft 7 in
    Ext Width 0 ft
    Ext Height 11 ft 9 in
    Exterior Color Ivory
    Hitch Weight 1131 lbs
    Gross Weight 8995 lbs
    Dry Weight 6695 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 78 gals
    Black Water Capacity 39 gals
    Tire Size 15"
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Quick Recovery
    AC BTU 15000 btu
    TV Info LR LED TV
    Awning Info 16' Electric One-Touch w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Reflection 150 Series 230RL

    Reflection 150 Series 230RL Floorplan Image

    Take a Virtual Tour

    Grand Design Reflection 150 Series 230RL fifth wheel highlights: U-Shaped ... more about Reflection 150 Series 230RL

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 28 ft 1 in
    Ext Width 0 ft
    Ext Height 11 ft 9 in
    Exterior Color Ivory
    Hitch Weight 1195 lbs
    Gross Weight 9495 lbs
    Dry Weight 6945 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 71 gals
    Black Water Capacity 39 gals
    Tire Size 15"
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Quick Recovery
    AC BTU 15000 btu
    TV Info LR LED TV
    Awning Info 17' Electric One-Touch w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Reflection 150 Series 273MK

    Reflection 150 Series 273MK Floorplan Image

    Grand Design Reflection 150 Series 273MK fifth wheel highlights: U-Shaped ... more about Reflection 150 Series 273MK

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 1
    Length 30 ft 4 in
    Ext Width 0 ft
    Ext Height 11 ft 9 in
    Int Height 0 ft
    Exterior Color Ivory
    Hitch Weight 1328 lbs
    Gross Weight 9495 lbs
    Dry Weight 7416 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 71 gals
    Black Water Capacity 39 gals
    Tire Size 15"
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Quick Recovery
    AC BTU 15000 btu
    TV Info LR 40" LED
    Awning Info 18' Electric One-Touch w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Reflection 150 Series 290BH

    Reflection 150 Series 290BH Floorplan Image

    Take a Virtual Tour

    Grand Design Reflection 150 Series 290BH fifth wheel highlights: Private ... more about Reflection 150 Series 290BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 1
    Length 34 ft 1 in
    Ext Width 0 ft
    Ext Height 11 ft 9 in
    Exterior Color Ivory
    Hitch Weight 1280 lbs
    Gross Weight 9995 lbs
    Dry Weight 8294 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 78 gals
    Black Water Capacity 39 gals
    Tire Size 15"
    Furnace BTU 35000 btu
    Number Of Bunks 3
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Quick Recovery
    AC BTU 15000 btu
    TV Info LR 40" LED
    Awning Info 21' Electric One-Touch w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Reflection 150 Series 295RL

    Reflection 150 Series 295RL Floorplan Image

    Take a Virtual Tour

    Grand Design Reflection 150 Series 295RL fifth wheel highlights: Kitchen Island ... more about Reflection 150 Series 295RL

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 32 ft 9 in
    Ext Width 0 ft
    Ext Height 11 ft 9 in
    Exterior Color Ivory
    Hitch Weight 1391 lbs
    Gross Weight 10195 lbs
    Dry Weight 8496 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 78 gals
    Black Water Capacity 39 gals
    Tire Size 15"
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Quick Recovery
    AC BTU 15000 btu
    TV Info LR 40" TV
    Awning Info 13'6" Electric One-Touch w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

Reflection 150 Series Features:

Standard Features



Exterior

  • Aerodynamic Front Cap with Max Turn Radius
  • Marine Grade LED Hitch Light
  • Rubberized Suspension Equalizer
  • Aluminum Wheels with E-Rated Tires
  • 80% Tint Radius Safety Glass Windows
  • Battery Kill Switch in Pass Thru Storage Area
  • 90 Degree Turn Radius Pin Box
  • 30# LP Bottles (2)
  • 30" Radius Entry Door
  • Outside Speakers
  • Outside Shower
  • Factory Installed Roof Ladder
  • Under Carriage Spare Tire and Carrier
  • High-Capacity Water Pump with Interior and Exterior Switch
  • Extra Large 1-1/2" Fresh Water Drain Valve

Construction

  • Gel Coated Ivory Fiberglass Exterior
  • Residential 5" Truss Rafters (16" O.C.)
  • Walk On Roof Decking
  • Fiberglass and Radiant Foil Roof and Front Cap Insulation
  • One-Piece TPO Roof Membrane with 12-Year Warranty
  • Easy Access Low Point Drain Valves
  • Laminated Aluminum Framed Rear Wall (R-9)
  • Laminated Aluminum Framed Side Walls (R-9)
  • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
  • Aluminum Framed Main Floor (R-30*)
  • Residential Wood Framed Roof (R-40*)

Kitchen

  • Gunstock Fixtures and Hardware
  • Deep, Under-mount Kitchen Sink
  • Hardwood Galley Slide Trim Moldings and End Caps

Interior

  • Hand Rubbed Maple Cabinet Doors
  • Solid Hardwood Drawer Fronts
  • Louvered Tread Steps to Bedroom
  • Solid Core Cabinet Stiles
  • Pre-Drilled and Screwed Cabinetry
  • Ball Bearing Full Extension Drawer Glides
  • Large Panoramic Slide Room Windows
  • Premium Congoleum Flooring
  • Ductless Flooring Throughout Living Area
  • Residential Style Window Treatment
  • Night Shade Window Covering
  • LED Lighting Throughout with Motion Sensors (Key Areas)

Bedroom

  • King Size Wardrobe
  • Oversized Underbed Storage
  • Residential Bedspread
  • Bedroom Heat Registers
  • Closeable A/C Vents
  • TV and Cable Prep

Bathroom

  • 30" x 36" Residential Walk-In Shower
  • Wide View Skylight Over Shower
  • Heat Duct and A/C Vents in Bathroom
  • Power Vent Fan
  • Extra Large Lav Top with Stainless Steel Sink
  • Large Medicine Cabinet with Mirror

Options

  • Chaise Lounge Dinette (220RK only)
  • 78" Theatre Seating IPO Chaise Lounge (220RK)
  • Free Standing Table and Chairs (2x Folding) (NA 220RK, 273MK, 290BH)
  • Dual Pane Windows
  • 2" Receiver Hitch (Mandatory)
  • Tri-fold Sofa IPO Theatre Seating (230RL only)
  • 50 AMP Service - Wired/Framed for 2nd AC (273MK, 290BH, and 295RL only) (Mandatory)
  • 2nd AC, 13.5k BTU (273MK, 290BH, and 295RL only)

Peace of Mind Package (Mandatory)

  • Aluminum "Tread Lite" Entry Steps
  • 8 Cu. Ft. Double Door Refrigerator w/Ext. Thermostat Control
  • Residential Single Lever Faucet with Pullout Sprayer
  • Sink Covers
  • Residential Cabinetry
  • Universal All-In-One Docking Station
  • 17.8 Gal./Hr. Quick Recovery Water Heater
  • Black Tank Flush
  • Baggage Doors with Magna Latch
  • Heated Wall Hugger Theatre Seats w/LED Lights
  • Residential Booth Dinette
  • LP Quick Connect

Ultimate Power Package (Mandatory)

  • One-Touch Electric Awning with LED Light
  • AM/FM/CD/DVD HDMI Bluetooth Stereo
  • High Definition LED Television w/Swing-arm (Living Area)
  • 50 AMP Electrical Service (290BH and 295RL only)
  • Residential Microwave Oven
  • Detachable Power Cord w/LED Light
  • 15k BTU Ducted AC
  • Maxx Air Fan w/Rain Sensor

Arctic 4-Seasons Protection Package (Mandatory)

  • 35k BTU High Capacity Furnace
  • Double Insulated Roof & Front Cap
  • Heated & Enclosed Dump Valves
  • Heated & Enclosed Underbelly w/Circulating Heat
  • Thermofoil Wrapped Frame and Subfloor (Beneath Main Holding Tanks)
  • Zero Degree Extended Season Enjoyment
  • EZ Winterization Valve in Utility Center
  • Ducted Heat to Pass Thru Storage Area
  • Insulated Slide out Floors
  • Attic Vent

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.
