Jayco Melbourne Motor Home Class C - Diesel

Previous
Next
1 of 15

Built for any adventure, the Melbourne class C diesel motorhome by Jayco starts with a custom-sized frame designed specifically for each floorplan.  The advanced construction techniques along with high quality products offer you a durable and comfortable coach.



The Mercedes 3500 chassis and V-6 turbo diesel engine with electronic fuel injection and 325 lb. torque will get you where you want to go without limits.  You will also appreciate the swivel driver and passenger seats giving you more seating in the main area, the keyless cab entry for convenience, the 84" interior ceiling height with soft-touch vinyl ceiling, full-linoleum flooring for easy clean up, and raised-panel hardwood cabinetry for style.



Start your adventure today, choose the Jayco Melbourne class C diesel motorhome that fits your RVing lifestyle!

  • Melbourne 24K

    Melbourne 24K Floorplan Image

    Take a Virtual Tour

    Jayco Melbourne class C diesel motorhome 24K highlights: Rear Queen Bed Slide ... more about Melbourne 24K

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 25 ft 2 in
    Ext Width 8 ft
    Ext Height 0 ft
    Int Height 6 ft 11 in
    Interior Color Chiffon, Regal
    Exterior Color Muirfield, Pinehurst, Waterville; Silver Met Graphics
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 31 gals
    Black Water Capacity 31 gals
    Furnace BTU 30000 btu
    Generator 3.6KW Onan LP
    Fuel Type Diesel
    Engine 3.0L V-6 BluTEC
    Chassis Mercedes 3500
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170.3 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 325 ft-lb
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 24" x 32"
    Number of Awnings 1
    LP Tank Capacity 12.2 gals
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 13500 btu
    Basement Storage 43 cu. ft.
    TV Info LR 32" LED
    Awning Info 14' Electric w/LED Light Strip
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Specifications

    Sleeps 5
    Slides 1
    Length 25 ft 2 in
    Ext Width 8 ft
    Ext Height 0 ft
    Int Height 6 ft 11 in
    Interior Color Chiffon, Regal
    Exterior Color Muirfield, Pinehurst, Waterville; Silver Met Graphics
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 31 gals
    Black Water Capacity 31 gals
    Furnace BTU 30000 btu
    Generator 3.6KW Onan LP
    Fuel Type Diesel
    Engine 3.0L V-6 BluTEC
    Chassis Mercedes 3500
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170.3 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 325 ft-lb
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    LP Tank Capacity 12.2 gals
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 13500 btu
    Basement Storage 17 cu. ft.
    TV Info LR 32" LED
    Awning Info 14' Electric w/LED Light Strip
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

Melbourne Features:

Standard Features (2020)



Customer Value Package

  • Soundstream Infotainment Dash Radio w/GPS & CD/DVD Player
  • One-piece seamless fiberglass front cap
  • Remote control and heated mirrors
  • Rear backup camera and monitor
  • Heated holding tanks (12V pads)
  • Frameless windows
  • Electric patio awning with LED light strip
  • Swivel driver and passenger seats
  • Keyless cab entry

Driving Equipment

  • Mercedes 3500 170" wheelbase 11,030-lb. GVWR chassis
  • V-6 Turbo 188 HP diesel engine with electronic fuel injection and 325-lb. torque
  • 5-speed automatic transmission
  • 7-pin trailer hitch plug
  • 5,000-lb. rear hitch receiver with dual connector
  • 220-amp alternator
  • Front and rear disc, 4-wheel anti-lock brakes
  • 12V chassis battery
  • Cab area privacy curtain

Exterior Equipment

  • White fiberglass walls with vinyl graphics
  • One-piece seamless front cap
  • TPO laminated roof
  • Electric-powered entrance step
  • Fiberglass running boards
  • Flush-mount LED marker lights
  • Backup/ reverse lights
  • Brake lights
  • Third brake light
  • Full pass-through storage compartment (24K)
  • 110V GFCI exterior receptacles
  • Battery disconnect
  • 30-amp detachable electrical service cord
  • 60 amp 12V converter
  • 3.6 KW Onan LP generator
  • 12V house battery
  • 12.2-gal. propane tank
  • LP quick-connect hookup
  • Black tank sprayer
  • Outside shower
  • 4" tube bumper with sewer hose storage
  • Chrome simulators
  • Valve stem extensions
  • Slideout awning toppers

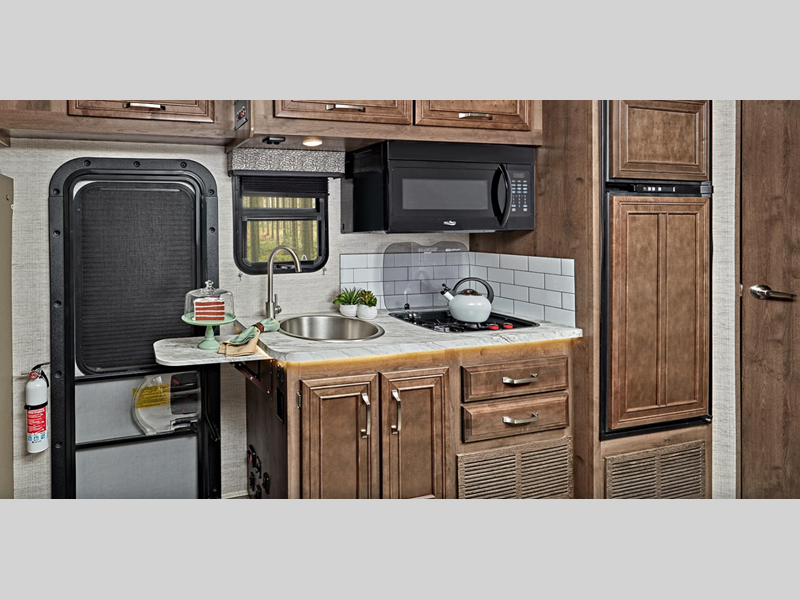

Interior Equipment

  • 84" interior ceiling height with soft-touch vinyl ceiling
  • Ball-bearing drawer guides
  • Raised panel hardwood cabinetry
  • Slideout fascia
  • Window valance
  • 8 cu. ft. gas/electric refrigerator
  • Suburban black 2-burner drop-in cooktop with flush cover
  • Convection microwave
  • Kitchen faucet with pull-out sprayer
  • Wooden sink cover/ cutting board
  • Flip-up countertop extension
  • 12V demand water pump
  • 6 gallon gas/electric water heater and water heater bypass
  • Digital antenna with signal booster
  • 13,500-BTU air conditioner
  • 30,000-BTU auto-ignition ducted furnace
  • Water-filtration system
  • 12V USB charging station in dinette area only
  • Jayco-exclusive easy operation legless dinette (24K), U-shaped dinette with stow away pedestal legs (24L)
  • Lap safety belts on all seating areas
  • Full linoleum
  • High-intensity LED ceiling lights
  • Pleated blackout shades
  • 32" LED living room TV
  • Cable TV hookup with RG-6 coax
  • Satellite dish prep
  • Laminate lavatory countertop with rectangular sink
  • Plastic toilet with hand sprayer
  • Shower with glass door
  • Shower skylight
  • Bathroom electric roof vent
  • Queen-sized bed with bedspread
  • Fan-Tastic fan in bedroom
  • Mattress bunk mats (300-lb. rating)

Exterior Decor

  • Silver Met Graphics
  • Muirfield Paint
  • Pinehurst Paint
  • Waterville Paint

Decor

  • Chiffon
  • Regal

Options

  • Customer Value Package
    • Backup Camera
    • Electric Awning w/LED Lights
    • Frameless Windows
    • Infotainment System
    • Keyless Cab Entry
    • Remote Control & Heated Mirrors
    • Stabilizer Jacks
    • Swivel Driver & Passenger Seats
    • Tank Heating Pads
  • Canadian Standards
  • CSA Chassis Upcharge
  • Front Entertainment Center with 32-inch LED HDTV
  • Sun Folding Windshield Shade
  • 3.2 KW Diesel Generator
  • Hydraulic Leveling Jacks

See us for a complete list of features and available options!

All standard features and specifications are subject to change.
